furukawa Rock Drill HCR1200ED drilling rig
- Product No.:2015310212314

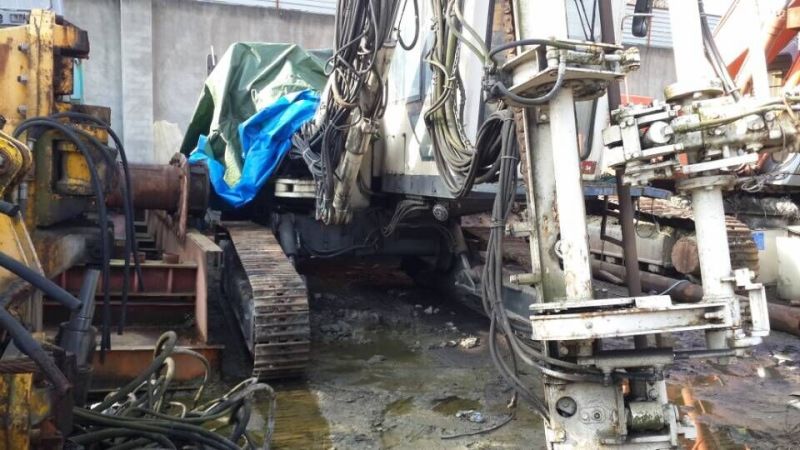

Furukawa Rock Drill HCR1200ED drilling rig
Year; 2003
hours; 5500
original JAPAN
ready working condition
Year; 2003
hours; 5500
original JAPAN
ready working condition
HCR1200* ED
Weight & dimensions
Operating weight, lbs (kg) 33,510 (15200)
A Overall length, ft (mm) 31' 11" (9725)
B Ground contact length, ft (mm) 9' 11
⁄2" (2780)
C Overall width with pre-cleaner, ft (mm) 11' 5" (3490)
Transport width, ft (mm) 8' 6" (2591)
D Width over tracks, ft (mm) 7' 11" (2400)
E Width of shoe, ft (mm) 1' 1" (330)
F Overall transport height, ft (mm) 12' 3" (3730)
Drifter: HD712
Weight, lbs (kg) 485 (220)
Impact rate, per min 2300
Number of rotations, per min 0-190
Undercarriage
Ground clearance, ft (mm) 1' 8" (520)
Oscillating angle, (degrees) ±7.5
Travel speed, mph (km/h) 0-1.92 (0-3.1)
Gradability degrees 30
Engine: Cummins QSB5.9-C
Type Water-cooled direct injection, 6-cylinders
turbo charged, Tier II diesel engine
Output/speed, Hp @ RPM 215 / 2500
No. of cylinders - bore / stroke, inch (mm) 6 - 4.01 / 4.72 (102 / 120)
Piston displacement, cubic inch (liters) 360" (5.9)
Hydraulic pump
Type 2-variable displacement piston pumps supply
pressure oil for both travel and drilling.1-gear pump
for cooling and dust collector.
Compressor: PDSF265-S32A
Free air delivery, cubic foot/min (m3
/min) 286' (8.1)
Delivery air pressure, PSI/MPa 1.03
Boom: JE326-136
Lift angle, degrees up/down 40/20
Swing angle, degrees right/left 38.5/6.5
Extension length, ft (mm) 3' 11" (1200)
Guide Shell: GH832-30
Length, ft (mm) 25' 6" (7800)
Feed length, ft (mm) 15' 2" (4620)
Slide length, ft (mm) 4' 11" (1500)
Swing angle, degrees right/left 30/90
Tilt angle, degrees 170
Guide rotary angle, degrees 90
Rod pull, force lbs (kN) 6632 (29.5)
Dust collector
Suction capacity, cubic foot/min (m3
/min) 1059' (30)
Cab
Type ROPS-FOPS, Air-conditioned and pressurized
with intake air filter
Width, ft (mm) 43" (1100)
Rod arrangement
Type Rod changer
Numbers of rod 6+1(starter rod)
Bit and rod
Bit diameter, inch (mm) 21
⁄2" - 31
⁄2" (64 - 89) 3" - 4" (76 - 102)
Rod size T38 T45
Rod length, ft (mm) 12' (3657)
Starter rod length, ft (mm) 12' - 16' (3657 - 4877)
* Specifications include ROPS-FOPS cab, without bit and rod.
805 Lake Street • Kent, OH 44240-0017 • Tel: 800.358.4476 • Fax: 330.673.8504
