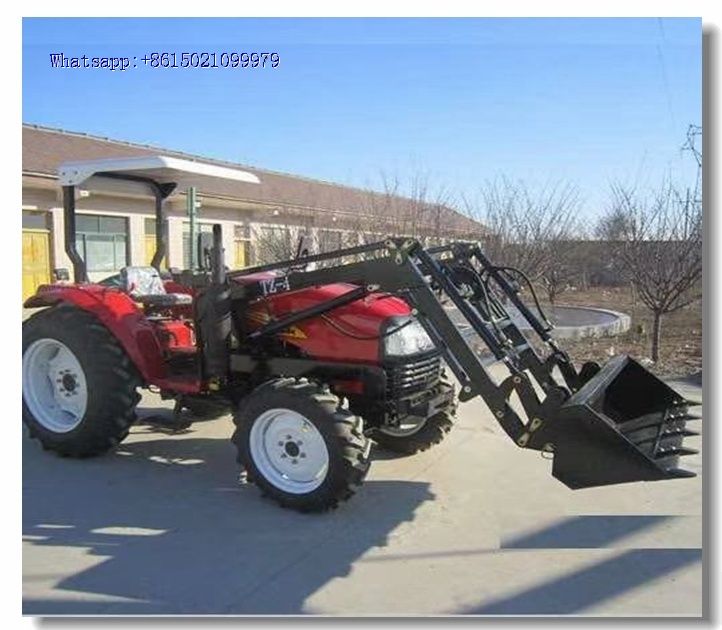

  • Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller
  • Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller
  • Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller
Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller

Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller



Agricultural Tractor 60HP Farm Compact Mini Tractor with Loader, Cultivator, Power Tiller

Basic Info

1. Basic Technical Data
Model  TH604-D
type  4×4 wheel type
Overall dimension(mm)  length 3565
 width  1500
 height  1260
 wheel tread front wheel  1050
rear wheel  1140-1300
Wheel base  1790
Min.Ground clearance 290
structure weight (kg) 1675
Diesel engine   model  LD4TD60
 type  inline water cooled four stroke  four cylinder
rated power (kw) 51.4
rated speed (r/min) 2200
 fuel type   diesel
 tire   front wheel  657*176-12
rear wheel  13.6-20
 clutch   dual stage clutch
 steering  cycloid rotary valve ,all hydraulic steering
 transimission  8F+4R
 Suspension type  rear postioned 3-ponit links catageory I
PTO   type and speed  540/1000 or 720/1000
spline size  ø35 6 teeth


2. Characteristics

Strong Power:
The farm tractor is in the top rank among the same industry in China. Its matched power brand can be Laidong

High efficiency:
1.The tractor adopts fully power steering hydraulic brakes system ,three-point linkage with Category II
2.PTO speed can be selected as 540/1000rpm to be suitable for different farm implements.
3.The tractor independently operated two stage clutch, reasonable 8F+4R shift gears to keep high working efficiency in various field work, transportation and engineering tasks.

High reliability: Strong double pressure lifting device, powerful lifting power, fast lifting speed, stable and reliable.





3. Quality control on Spares and finished to keep quality and performance consistent.
Model NO.
TH604-2
Service Life
6-10 Years
Size
Medium
Color
Red
Condition
New
Tyre
657*176-12/13.6-20
Steering
Hydraulic Steering
Transmission
8f+4r
Clutch
Dual Stage
Pto Speed
540/1000 or 720/1000
Overall Size
3565 X 1500 X 1260
Structure Mass
1741
Wheel Base
1790mm
Suspension
Rear Suspension Category I1
Wheel Drive
4 Wheels
Wheel Tread
1040/1140mm
Trademark
Taihong
Transport Package
Steel Frame
Specification
60hp
Origin
China
HS Code
8701100000
