Products >> Low-bed Trailer >>

  • 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo
  • 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo
  • 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo
  • 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo
40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo

40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo

 40t 50t 60t 65t heavy duty flated low bed trailers for sale with high quality burundi Bujumbura equatorial-guinea Malabo

Specifications

1.the length,width,height can be free design
2.competitive price
3 with good price on hot sale
4 with high quaality



Trailer Model

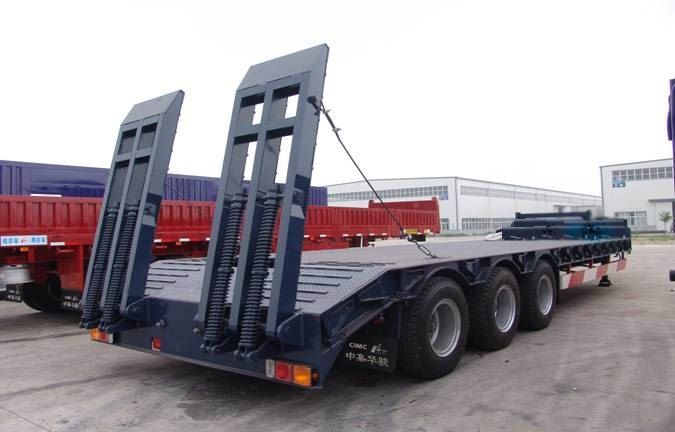

3 Axle Low bed Semi Trailer

Function

Apply for heavy machine transporting

Dimension(Lx W x H)(mm)

16000*2800*1700

Loading Weight( KG)

60000

Departure Angle

16

Axle Brand

FUWA 13TON Axle

Axle Number

3

Wheelbase(mm)

8580+1310+1310

Suspension system

Mechanical suspension

Steel Spring

10/10/10

Frame

The height of the beam is500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.

Platform plate

5mm Diamond Plate

Tire Type and quantity

1100R20  12units

Traction Pin

50mm or 90mm

Spare Wheel Bracket

2 picecs

Tool Box

1 Unit

Landing Leg

28T load landing leg

Brake system

Dual Line braking system ,none ABS.

Brake air chamber

6 air chambers

Electrical system

24V,7 Pole plug

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

None

Painting

Color by customerrequirement

Packing

Polish with wax before shipping

Delivery way

Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.











More Information:



* We supply 20 feet and 40 feet Flatbed Semi-Trailer.



* The semi-trailer could beFlatbed and skeletal, 2 axle and 3 axle according to different demands.



* Our factory will carry on technological transformation to the products constantly, adopt the new technology.



* The high quality material perfects the function of use of the products and product quality constantly.



* Satisfy the masses of customers' request with the hospitable service and sincere management.
