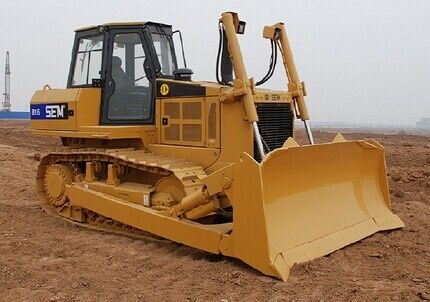

Caterpillar SEM brand new bulldozer SEM816 china
- Product No.:2014913173721
Caterpillar SEM brand new bulldozer SEM816 china
Features
• Inheriting the 105 years’ design experience of Caterpillar bulldozer, SEM816 was the first 160hp~220hp hydrostatic crawler bulldozer developed in China.
• Engine conforms to National stage II emission regulations, and Tier 3 engine is optional.
• Hydrostatic drive system provides excellent operationability and maneuverability, improved power steering capability and stepless speed control. It not only meet the requirements for normal work conditions, but also is adaptable to the work in narrow and soft ground conditions, which improves work efficiency.
• Electronic controlled variable speed single handle (precise speed control, Speed Recall function, and horn), integrated deceleration and brake pedal and pilot handle of working devices provide operators quick steering/reversing, quick brake response, and precise blade control, which improves comfort and reduces fatigue.
• Combined instrument panel integrates operational control display and 3-level automatic failure warning function. ECM provides automatic trouble diagnosis function.
• Capacious, vibration absorption and enclosed cab is equipped with suspension seat, air conditioner, cup holder, cigarette lighter, working device lock switch, and ROPS/FOPS system, which provides operators a safe, comfortable and low noise work environment.
• High strength main frame, L type push arm, SU blade, standard towbar device, and optional ripper.
• Caterpillar supplier provides chassis parts like sprocket, idler, track roller, carrier roller, and crawler; and all the hydrostatic drive parts are originally imported parts, in addition to Caterpillar’s mature ECM control system, providing high quality guarantee.
• Compared with traditional bulldozers, SEM 816 provides higher traction force, excellent performance working on slopes, lower fuel consumption, and higher work efficiency.
• Engine conforms to National stage II emission regulations, and Tier 3 engine is optional.
• Hydrostatic drive system provides excellent operationability and maneuverability, improved power steering capability and stepless speed control. It not only meet the requirements for normal work conditions, but also is adaptable to the work in narrow and soft ground conditions, which improves work efficiency.
• Electronic controlled variable speed single handle (precise speed control, Speed Recall function, and horn), integrated deceleration and brake pedal and pilot handle of working devices provide operators quick steering/reversing, quick brake response, and precise blade control, which improves comfort and reduces fatigue.
• Combined instrument panel integrates operational control display and 3-level automatic failure warning function. ECM provides automatic trouble diagnosis function.
• Capacious, vibration absorption and enclosed cab is equipped with suspension seat, air conditioner, cup holder, cigarette lighter, working device lock switch, and ROPS/FOPS system, which provides operators a safe, comfortable and low noise work environment.
• High strength main frame, L type push arm, SU blade, standard towbar device, and optional ripper.
• Caterpillar supplier provides chassis parts like sprocket, idler, track roller, carrier roller, and crawler; and all the hydrostatic drive parts are originally imported parts, in addition to Caterpillar’s mature ECM control system, providing high quality guarantee.
• Compared with traditional bulldozers, SEM 816 provides higher traction force, excellent performance working on slopes, lower fuel consumption, and higher work efficiency.
Technical Parameters | |
---|---|
Operating Weight | 17070 Kg |
Ground Pressure | 67.5 Kpa |
Track Center Distance | 1880 Mm |
Min. Ground Clearance | 410 Mm |
Gradeability | 30° |
Blade Capacity | 4.27 M³ |
Blade Width | 3140 Mm |
Max. Depth of Cut | 430 Mm |
Max. Output Traction | 280 Kn |
Engine | |
Model | Weichai Wd10g178e25/Hangzhou D10.18ct21 Stage Ⅱ |
Rated Revs | 1850 R/Min |
Flywheel Power | 120 Kw/160 Hp |
Displacement | 9.726 L |
Max. Torque | 835 N.M |
Drive System | |
Drive Mode | Electric Controlled Hydraulic Drive |
Steering Brake | Hydrostatic Steering, Wet Multi-Disc Brake |
Final Drive | 1st Spur Gear Drive, 1st Planetary Gear Drive |
Travel Speed, Forward/Reverse | Stepless Speed Change 0-10 Km/Hr |
Hydraulic System | |
System Pressure | 19 Mpa |
Flow | 172 L/Min |
Characteristics | Pilot Control |
Undercarriage System | |
Type | Balance Beam, Pivot Structure |
Amt. of Support Rollers (Single Side) | 6 |
Amt. of Sprocket (Single Side) | 2 |
Standard Track Width | 510 Mm |
Track Length on Ground | 2430 Mm |
