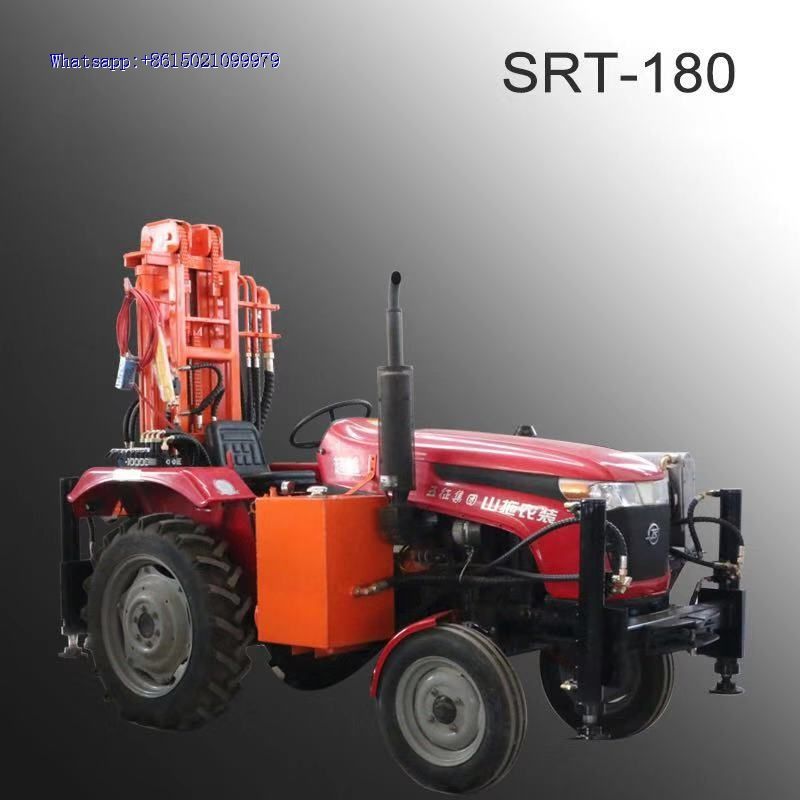

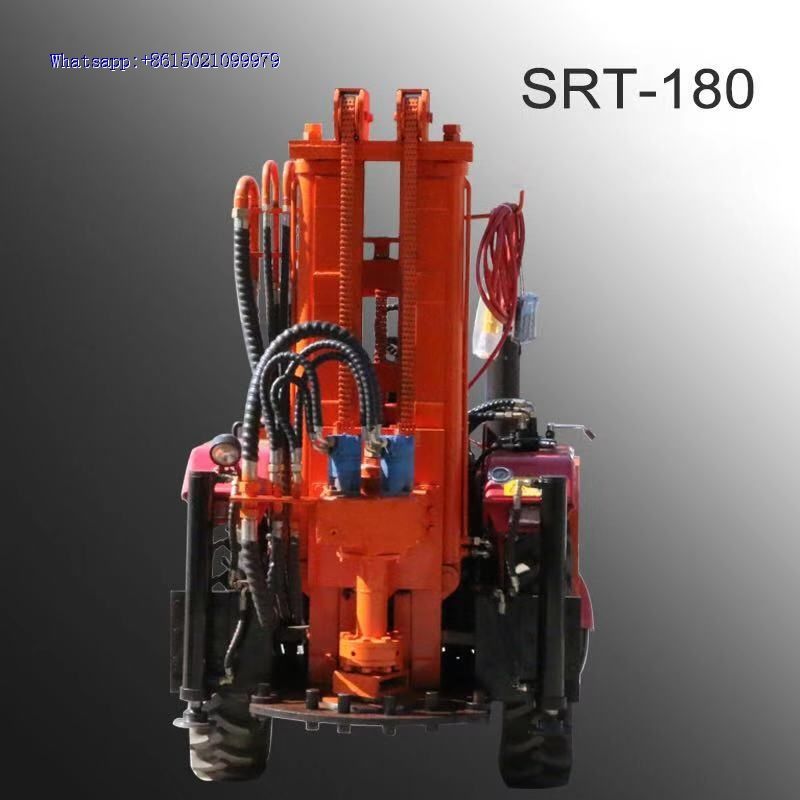

  • 100m 120m 150m 200m wheel tracto WATER WELL DRILLING RIG  shallow  water well drilling equipment water well rig  well digging
  • 100m 120m 150m 200m wheel tracto WATER WELL DRILLING RIG  shallow  water well drilling equipment water well rig  well digging
100m 120m 150m 200m wheel tracto WATER WELL DRILLING RIG  shallow  water well drilling equipment water well rig  well digging 100m 120m 150m 200m wheel tracto WATER WELL DRILLING RIG  shallow  water well drilling equipment water well rig  well digging

100m 120m 150m 200m wheel tracto WATER WELL DRILLING RIG shallow water well drilling equipment water well rig well digging

 SRXY-130 CORE WATER WELL DRILLING RIG water well drilling machine portable well drilling rig hydraulic water well drill

SRJKC300 300m TRUCK MOUNTED WATER WELL DRILLING RI water well drill rig shallow water well drilling equipment

DESCRIPTION
JKCS300 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
SPECIFICATIONS
SPECIFICATIONS OF SRJKCS300 VERSATILE WELL DRILLING RIG
Borehole Diameter φ105-350mm
Borehole Drilling Depth 300m
Working Air Pressure 1.05-3.05MPa
Air Consumption 16-35m?/min
Rod Diameter φ89mm, φ102mm, φ114mm
Rod Length 3m / 4.5m
Grade Ability 15°
WINCH SYSTEM ( STANDARD MAIN WINCH & OPTIONAL TOOLING WINCH)
Lifting Force 15t
Lifting Height 8m
FEED SYSTEM
Axial Pressure ±6t
Rotation Torque 4500N.m
8500N.m
Rotation Rate 0-80rpm
0-160rpm
Weight 8t (excluding vehicle)
Dimension (L x W x H) 10500mm x 2480mm x 3050mm (transport)
Working Size (L x W x H) 11000mm x 2480mm x 7147mm

==============================================
please feel free contact us, whatsapp/wechat::008615021099979
====================================================
FY600/F800 CRAWLER WATER WELL DRILLING RIG
FY600/F800 Crawler Water Well Drilling Rig

DESCRIPTION

600M 800M depth Water Well Drilling Rig

Product Features


● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.


● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

SPECIFICATION
FY600 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 600m
Drilling Diameter 140-350mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 118KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 28 ton
Rotary Speed 45-115 rpm
Rotary Torque 8500-11000 N.m
Weight 12000KG
Dimensions 6000*2200*2850mm



FY800 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 700m
Drilling Diameter 140-400mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 140KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 30 ton
Rotary Speed 55-120 rpm
Rotary Torque 8850-13150 N.m
Weight 13000KG
Dimensions 6100*2200*2900mm



 ==================================================================================
please feel free contact us, whatsapp/wechat::008615021099979

=====================================================

FY600 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 600m
Drilling Diameter 140-350mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 118KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 28 ton
Rotary Speed 45-115 rpm
Rotary Torque 8500-11000 N.m
Weight 12000KG
Dimensions 6000*2200*2850mm



FY800 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 700m
Drilling Diameter 140-400mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 140KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 30 ton
Rotary Speed 55-120 rpm
Rotary Torque 8850-13150 N.m
Weight 13000KG
Dimensions 6100*2200*2900mm
