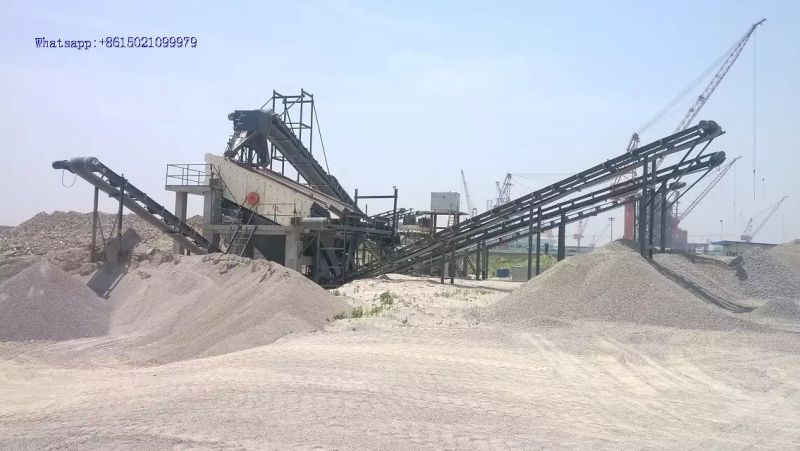

100-120TPH Mobile Crushing Plant

This plant has two chassis, MG9638PE69 and M4S1848CS160 and it mainly consists of hopper, vibrating feeder, jaw crusher, cone crusher, vibrating screen and sand washing machine. This plant is suitable for producing medium and fine particles, and its capacity is about 100-120 tons per hour.

Feature
1.Short installation period
The plant can come into use with simple assembly after arriving at the site.
2.Easy moving
The chassis and belt conveyors can move with the wheels, which make the plant move to other sites easily.
3.Stable running
Both the cone crusher and the vibrating screen adopt oil lubrication station, which can keep the lubricating oil appropriate temperature. And machines run more stable.







Specifications



No Equipments Model Quantity Power(KW)
1 Vibrating Feeder GZD960×3800 1 11
2 Jaw Crusher PE600×900 1 75
3 Vibrating Feeder GZT100-6 1 1.5
4 Cone Crusher CS160 1 160
5 Vibrating Screen 4YZS1848 1 22
6 Sand Washing Machine XSD2816 1 11
