DESCRIPTION
400M depth Water Well Drilling Rig
Product Features
● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
SPECIFICATION
SPECIFICATIONS

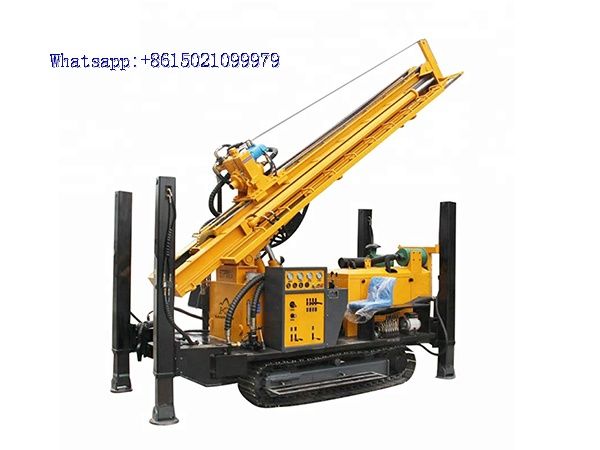

FY300A CRAWLER WATER WELL DRILLING RIG
Drilling Depth |
300m |
Drilling Diameter |
140-325mm |
One-Time Advance Length |
3.40m |
Walking Speed |
2.50km/h |
Climbing Angles |
30 degree |
Engine Power |
76KW |
Work Air Pressure |
1.7-3.0 Mpa |
Air Consumption |
17-35m3/min |
Drill Pipe Length |
2m, 3m |
Drill Pipe Diameter |
76mm, 89mm, 102mm |
Rig Lifting Force |
16 ton |
Rotary Speed |
40-70 rpm |
Rotary Torque |
5700-7500 N.m |
Weight |
7000KG |
Dimensions |
4100*1950*2600mm |
FY300 CRAWLER WATER WELL DRILLING RIG
Drilling Depth |
300m |
Drilling Diameter |
140-325mm |
One-Time Advance Length |
6.60m |
Walking Speed |
2.50km/h |
Climbing Angles |
30 degree |
Engine Power |
84KW |
Work Air Pressure |
1.7-3.3 Mpa |
Air Consumption |
17-35m3/min |
Drill Pipe Length |
2m, 3m, 6m |
Drill Pipe Diameter |
89mm, 102mm |
Rig Lifting Force |
20 ton |
Rotary Speed |
55-115 rpm |
Rotary Torque |
6200-8500 N.m |
Weight |
9000KG |
Dimensions |
5900*2000*2850mm |
==============================================
please feel free contact us, whatsapp/wechat::008615021099979
====================================================
FY600/F800 CRAWLER WATER WELL DRILLING RIG
FY600/F800 Crawler Water Well Drilling Rig
DESCRIPTION
600M 800M depth Water Well Drilling Rig

Product Features
● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
SPECIFICATION
FY600 CRAWLER WATER WELL DRILLING RIG
Drilling Depth |
600m |
Drilling Diameter |
140-350mm |
One-Time Advance Length |
6.60m |
Walking Speed |
2.50km/h |
Climbing Angles |
30 degree |
Engine Power |
118KW |
Work Air Pressure |
1.7-3.5 Mpa |
Air Consumption |
17-42m3/min |
Drill Pipe Length |
2m, 3m, 6m |
Drill Pipe Diameter |
102mm, 108mm, 114mm |
Rig Lifting Force |
28 ton |
Rotary Speed |
45-115 rpm |
Rotary Torque |
8500-11000 N.m |
Weight |
12000KG |
Dimensions |
6000*2200*2850mm |
FY800 CRAWLER WATER WELL DRILLING RIG
Drilling Depth |
700m |
Drilling Diameter |
140-400mm |
One-Time Advance Length |
6.60m |
Walking Speed |
2.50km/h |
Climbing Angles |
30 degree |
Engine Power |
140KW |
Work Air Pressure |
1.7-3.5 Mpa |
Air Consumption |
17-42m3/min |
Drill Pipe Length |
2m, 3m, 6m |
Drill Pipe Diameter |
102mm, 108mm, 114mm |
Rig Lifting Force |
30 ton |
Rotary Speed |
55-120 rpm |
Rotary Torque |
8850-13150 N.m |
Weight |
13000KG |
Dimensions |
6100*2200*2900mm |
==================================================================================
please feel free contact us, whatsapp/wechat::008615021099979
=====================================================
FY600 CRAWLER WATER WELL DRILLING RIG
Drilling Depth |
600m |
Drilling Diameter |
140-350mm |
One-Time Advance Length |
6.60m |
Walking Speed |
2.50km/h |
Climbing Angles |
30 degree |
Engine Power |
118KW |
Work Air Pressure |
1.7-3.5 Mpa |
Air Consumption |
17-42m3/min |
Drill Pipe Length |
2m, 3m, 6m |
Drill Pipe Diameter |
102mm, 108mm, 114mm |
Rig Lifting Force |
28 ton |
Rotary Speed |
45-115 rpm |
Rotary Torque |
8500-11000 N.m |
Weight |
12000KG |
Dimensions |
6000*2200*2850mm |
FY800 CRAWLER WATER WELL DRILLING RIG
Drilling Depth |
700m |
Drilling Diameter |
140-400mm |
One-Time Advance Length |
6.60m |
Walking Speed |
2.50km/h |
Climbing Angles |
30 degree |
Engine Power |
140KW |
Work Air Pressure |
1.7-3.5 Mpa |
Air Consumption |
17-42m3/min |
Drill Pipe Length |
2m, 3m, 6m |
Drill Pipe Diameter |
102mm, 108mm, 114mm |
Rig Lifting Force |
30 ton |
Rotary Speed |
55-120 rpm |
Rotary Torque |
8850-13150 N.m |
Weight |
13000KG |
Dimensions |
6100*2200*2900mm |
|
