DESCRIPTION

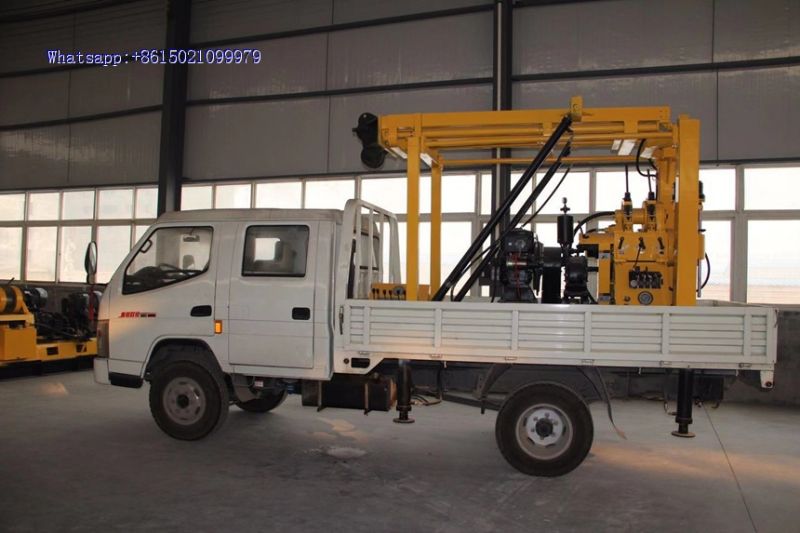

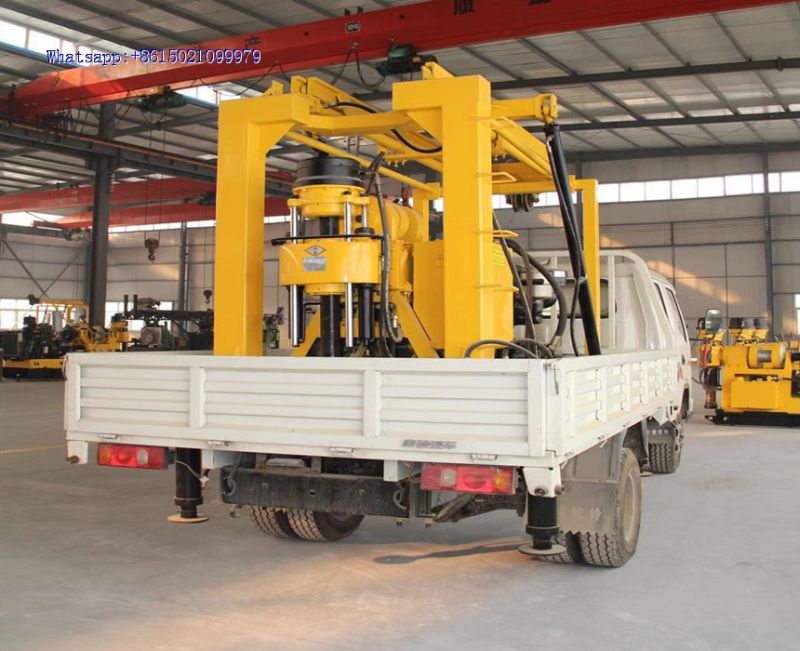

JKCS300 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
SPECIFICATIONS
SPECIFICATIONS OF SRJKCS300 VERSATILE WELL DRILLING RIG
| Borehole Diameter |
φ105-350mm |
| Borehole Drilling Depth |
300m |
| Working Air Pressure |
1.05-3.05MPa |
| Air Consumption |
16-35m?/min |
| Rod Diameter |
φ89mm, φ102mm, φ114mm |
| Rod Length |
3m / 4.5m |
| Grade Ability |
15° |
WINCH SYSTEM ( STANDARD MAIN WINCH & OPTIONAL TOOLING WINCH)
| Lifting Force |
15t |
| Lifting Height |
8m |
FEED SYSTEM
| Axial Pressure |
±6t |
| Rotation Torque |
4500N.m |
| 8500N.m |
| Rotation Rate |
0-80rpm |
| 0-160rpm |
| Weight |
8t (excluding vehicle) |
| Dimension (L x W x H) |
10500mm x 2480mm x 3050mm (transport) |
| Working Size (L x W x H) |
11000mm x 2480mm x 7147mm |
==============================================
please feel free contact us, whatsapp/wechat::008615021099979
====================================================
FY600/F800 CRAWLER WATER WELL DRILLING RIG
FY600/F800 Crawler Water Well Drilling Rig
DESCRIPTION
600M 800M depth Water Well Drilling Rig
Product Features
● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
|
